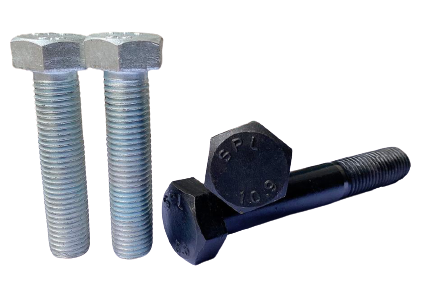

Hex Bolt

Hex bolts, also called hexagon screw head bolts, hex cap bolts, hex-cap screws, or machine bolts, are a very common choice when it comes to construction and repair Applications for hexagon screw head bolts can vary from exterior and automotive to marine, coastal, and high temperature environments ,all type of hex bolts, heavy hex bolts ,flange bolts, round head bolts ,hex bolt with split pin hole , fit bolts ,oval head bolt ,snap head bolt as per drawing & specification, national & international.

METRIC SERIES

PRODUCT DETAIL	SIZE	GRADE	DIMENSION	CHEMICAL & MECHANICAL	FINISH
HEX BOLT	METRIC:M12, M14, M16, M18, M20, M22, M24, M27, M30, M33 M36, ,M39, M42, M45, M48, M52, M56, M64, M72	GR.4.6, 5.6, 8.8, 10.9, 12.9 GR.4.6, 5.6, 8.8, 10.9, 12.9 Gr.8.8 , 10.9 GR. B8,B8M GR.660 (ENCONEL STEEL)	IS 1364 Part 1 IS 1363 Part 1 DIN 931 ASME B18.2.3.3M ASME B18.2.3.3M	IS 1367 PART 3 IS 1367 PART 3 ISO 898-PART 1 ASTM A193 ASTM A453	HOT DIP GALVANISED : IS 1367 PT 13 IS: 4759 BS EN: 1461, ASTM A153 ASTM A123 BLACK PHOSPHATE: IS 1367 PT 12 ELECTRO GALVANISED : IS: 1367 PT 11 , IS: 1573 PTFE COATING: ASTM D:3294

INCHES SERIES

PRODUCT DETAIL	SIZE	GRADE	DIMENSION	CHEMICAL & MECHANICAL	FINISH
HEX BOLT	INCH SERIES: 1/4”, 5/16”, 3/8” 7/16”, 1/2”, 9/16” 5/8”, 3/4”, 7/8”, 1”, 1.1/8”, 1.1/4”, 1.3/8”, 1.1/2”, 1.5/8”, 1.3/4”, 1.7/8”, 2”, 2.1/4”, 2.1/2”	BS 1768 GR. S,V BS 1083 GR. A,B,T GR. B8,B8M GR. 660 (ENCONEL STEEL)	BS 1768 BS 1083 ASME B18.2.3.3M ASME B18.2.2	BS 1768 BS 1083 ASTM A193 ASTM A453	HOT DIP GALVANISED : IS 1367 PT 13 IS: 4759 BS EN: 1461, ASTM A153 ASTM A123 BLACK PHOSPHATE: IS 1367 PT 12 ELECTRO GALVANISED : IS: 1367 PT 11 , IS: 1573 PTFE COATING: ASTM D:3294
